Extend Volume/Partition in Hyper-V Virtual Machine

Published on: December 13, 2019

This article introduces how to extend partition in Hyper-V virtual machine, 2 ways to extend vm partition in hyper-v without losing data.

Applies to: Windows 10, Windows 8, Windows 7, Windows Server 2019, Windows Server 2016, Windows Server 2012 (R2), Windows Server 2008 (R2), Windows Server 2003 (R2).

Extend VM partition

The same with physical server and PC, you need to repartition hard disk for Hyper-V virtual machine, for example: merge two partitions together, shrink a larger partition to create new, or extend a virtual partition when it is running out of space. To complete these tasks, you need a reliable tool and follow the right guide. This article introduces detailed steps how to extend partition/volume in Hyper-V virtual machine without losing data.

Take care of data while extending partition in Hyper-V virtual machine

There's potential system damage and data loss risk while resizing and extending vm partitions, because the parameters of associated disk, partition and files must be modified, sometimes all files in a partition must be moved to new locations. If you extend system partition, the boot related files should be updated, too. Therefore, first of all you'd better create Checkpoint or independent backup.

Secondly, you'd better run safe partition software. Among them all, NIUBI Partition Editor is recommended, because it has innovative Virtual Mode, Cancel-at-will and 1-Second Rollback technologies to protect system and data. In addition, it is much faster because of its unique file-moving algorithm. It is helpful especially when you extending partition for Hyper-V virtual server.

How to extend partition in Hyper-V with free space in other volume

In most cases, there's another partition such as D: on the same virtual disk, so you can shrink it to extend C: drive. After shrinking a partition, part of free unused space will be converted to Unallocated, then you can combine it to other partition. With safe partition editor software, you can accomplish this task without losing data. Operating System, programs and associated settings, as well as anything else keep the same with before.

How to extend partition for Hyper-V virtual machine:

  1. Download NIUBI Partition Editor and install in Hyper-V guest server. Right click the partition with plenty of free space and select "Resize/Move Volume".
    NIUBI Partition Editor

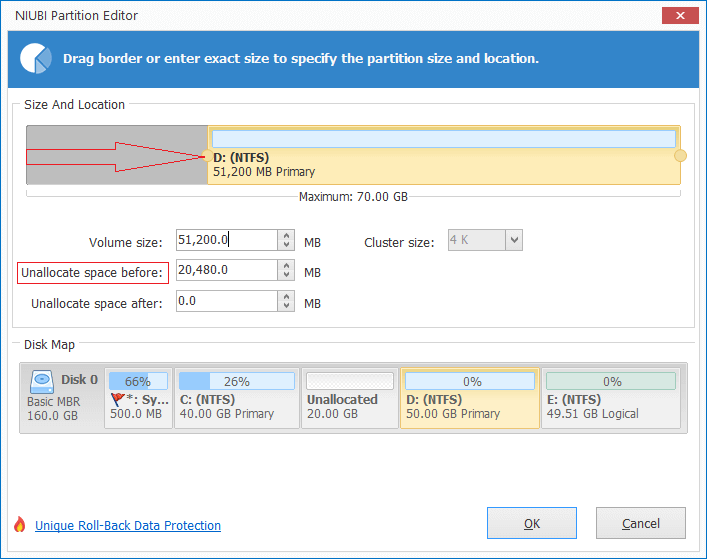

  2. In the pop-up window, drag either border towards the other one, or enter an amount of space in the box below. Then part of free space of this partition will be converted to Unallocated. (If you want to shrink D to expand C, you'd better make Unallocated space on the left side of D.)

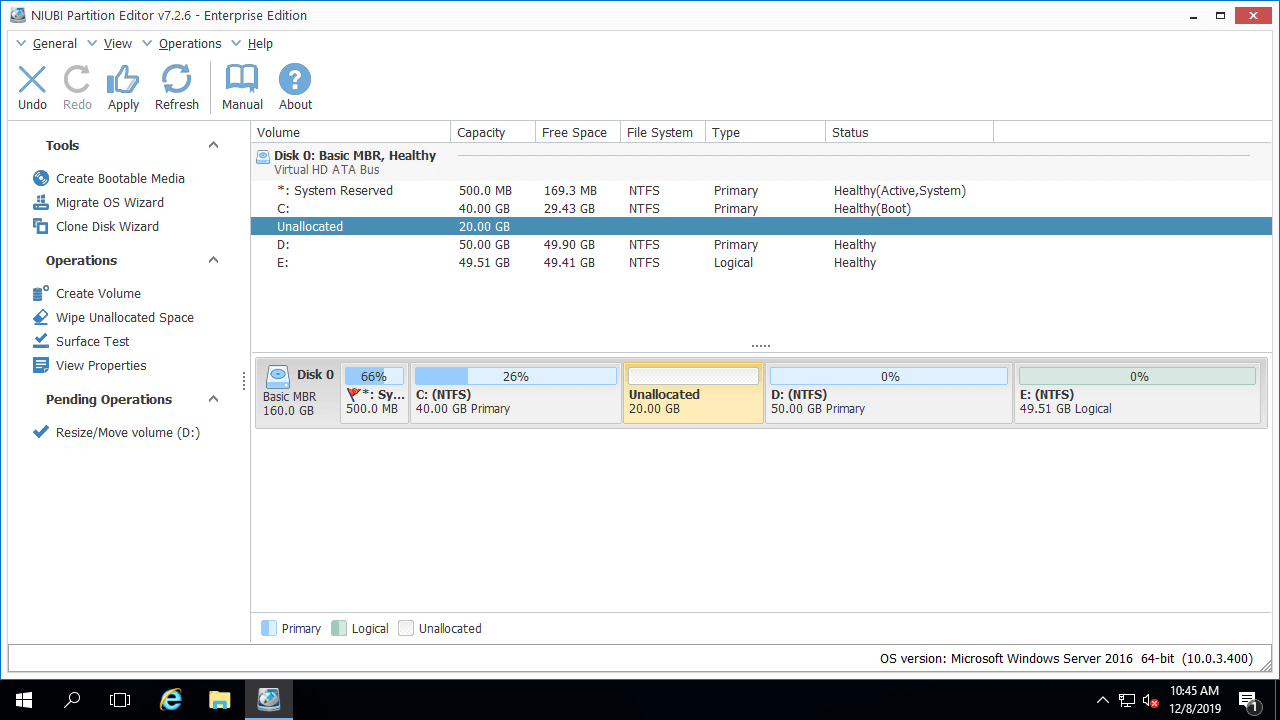

    Shrink D
    Shrink D
  3. Right click the partition that you want to extend and select "Resize/Move Volume" again, drag the border opposite to the other one to combine Unallocated space.
    Extend C
  4. Click Apply on top left to execute, done. (You can undo or redo the pending operations, partitions won't be modified until click Apply to confirm.)
    System volume extended

If you want to extend a non-adjacent partition, for example, shrink drive E to expand C, you need to move partition D before adding Unallocated space to C drive. Follow the steps in the video to extend partition (C:) by shrinking other volumes on the same virtual disk:

Video guide

How to extend volume in hyper-v after expanding virtual disk

If there's no or not enough free space in other partitions on the same disk, NO software can extend partition C by adding space from another different disk. Better than physical server or computer, you can expand virtual hard disk in Hyper-V easily.

How to extend virtual partition in Hyper-V when there's no available free space in disk:

  1. Follow the steps to increase size of Hyper-V virtual disk. After that, additional space will be shown as Unallocated on the end.
  2. Follow the steps in the video to merge additional Unallocated space to C drive (or other partition).

Video guide

Besides shrinking and extending partitions, NIUBI Partition Editor helps do many other disk partition operations such as move, merge, copy, convert, defrag, hide, wipe, format partition.
